| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | fanryn |
| ได้รับการรับรอง: | ASTM E84 |
| หมายเลขรุ่น: | ผ้าห่มแก้ว |
| จำนวนสั่งซื้อขั้นต่ำ: | 1*40HQ |
| ราคา: | 0.1-5$ |
| รายละเอียดการบรรจุ: | ถุงพลาสติกสูญญากาศ+ถุงทอ |
| เวลาการส่งมอบ: | 7-10 วัน |
| เงื่อนไขการชำระเงิน: | t/t |
| สามารถในการผลิต: | 10,000 suqare เมตร |
| เป็นมิตรกับสิ่งแวดล้อม: | ใช่ | แรงอัด: | สูง |
|---|---|---|---|
| วัสดุ: | ผ้าขนสัตว์ | การต่อต้านไฟ: | คลาส A |
| การดูดซับเสียง: | สูง | ความต้านทานสารเคมี: | สูง |
| ความต้านทานความชื้น: | สูง | วิธีการติดตั้ง: | รอลล์ หรือ แบท |
| ความหนาแน่น: | 10-100 kg/m3 | ความต้านทานการกัดกร่อน: | สูง |
| การนำความร้อน: | 0.031-0.042 w/mk | แอปพลิเคชัน: | การสร้างฉนวนกันความร้อน |
| ประเภทฉนวน: | ความร้อน | ความทน: | ยาวนาน |
Product Information:

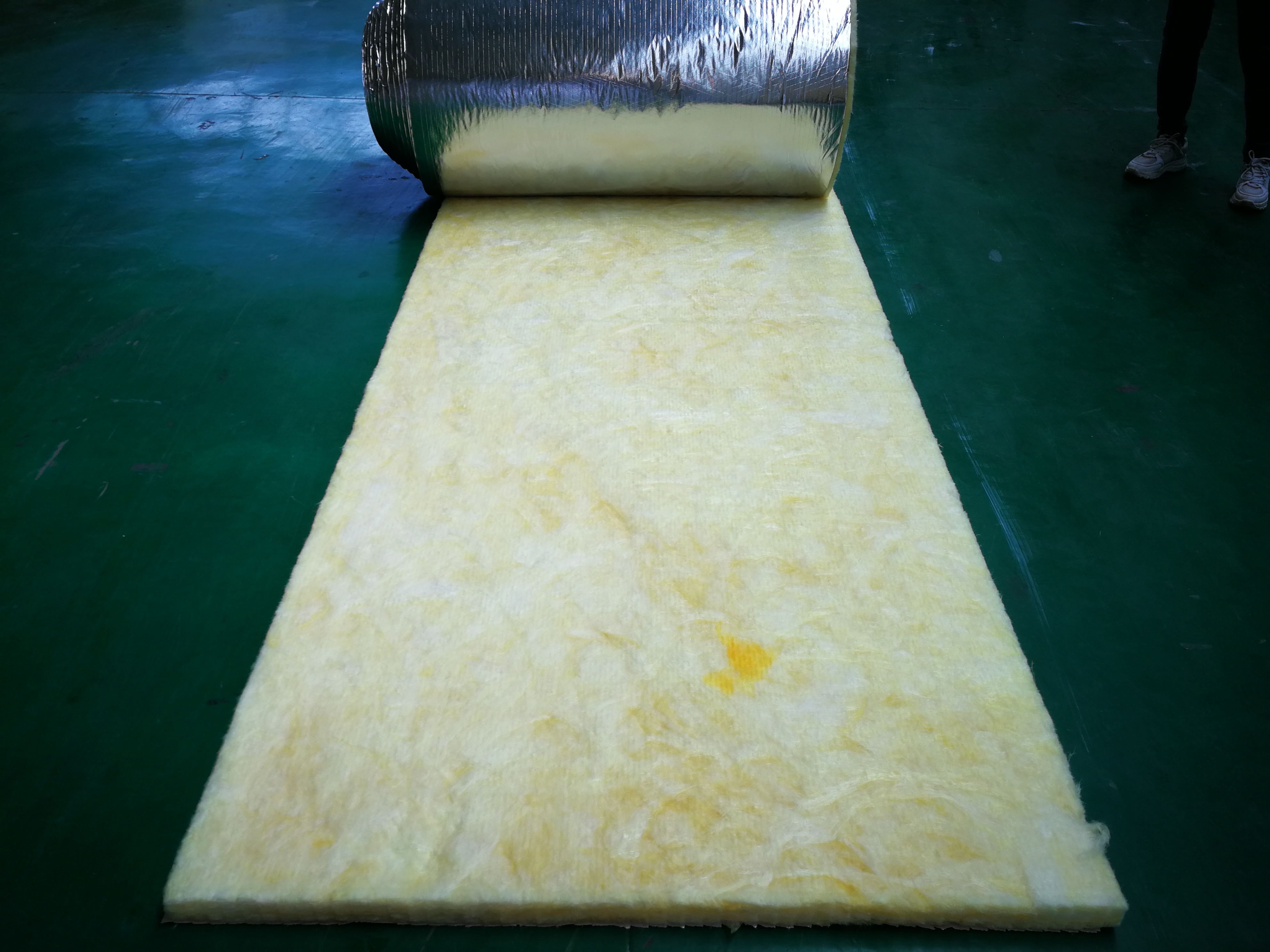

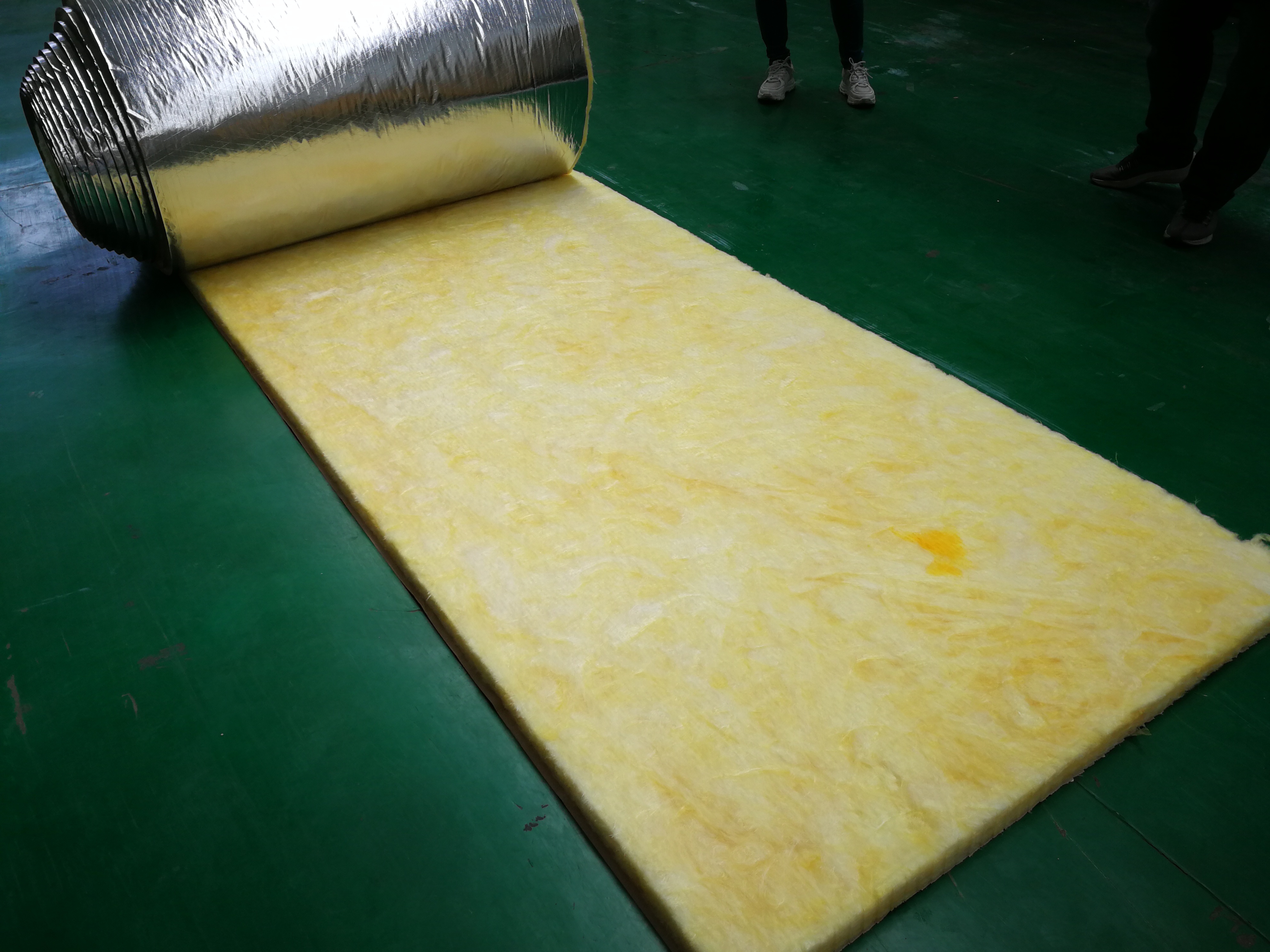

FANRYN centrifugal glass wool blanket insulation is engineered for large-area installation, delivering not only superior thermal performance but also effective vibration absorption and noise isolation—particularly for mid- to low-frequency sounds. This helps minimize sound transmission and promotes a quieter, more comfortable working environment. An optional aluminum foil facing is available to enhance moisture resistance, inhibit corrosion, and improve thermal reflectivity, thereby increasing overall durability and energy efficiency. Ideal for use in hygienic or high-humidity settings, this insulation offers reliable performance in demanding applications.
Specification of Aluminum Foil Faced Fiberglass Insulation Roll Thermal Acoustic Blanket for HVAC Pipe Wrap:
|
Density(kg/m3) |
Thickness(m) |
Length (m) |
Width (m) |
Rolls/packing |
|
|
10-48 |
0.025-0.2 |
5-30 |
0.6 |
2 rolls |
|
|
10-48 |
0.025-0.2 |
5-30 |
1.1 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.15 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.2 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.25 |
1 roll |
2 rolls overlapping |
Technical Data of Aluminum Foil Faced Fiberglass Insulation Roll Thermal Acoustic Blanket for HVAC Pipe Wrap:
|
Technical Data |
|||
|
Item |
Unit |
Index |
Standard |
|
Density |
kg/m3 |
10-48 |
GB/T 5480.3 |
|
Average fiber dia |
μm |
5-8 |
GB/T 5480.4 |
|
Water content |
% |
≤ 1 |
GB/T 16400-2003 |
|
Grade of combustibility |
|
Non-combustible GradeA |
GB 8624-1997 |
|
Reshrinking temp |
℃ |
250-400 |
GB/T 11835-2007 |
|
Thermal conductibility |
w/m·k |
0.034-0.06 |
GB/T 10294 |
|
Hydrophobicity |
% |
≥ 98 |
GB/T 10299 |
|
Moisture rate |
% |
≤ 5 |
GB/T 5480.7 |
Main application of Aluminum Foil Faced Fiberglass Insulation Roll Thermal Acoustic Blanket for HVAC Pipe Wrap:
1.Wall Insulation
Serves as an efficient thermal barrier for both exterior and interior building walls, significantly minimizing heat transfer to enhance energy efficiency and indoor comfort.
2.Steel Structure Insulation
Perfect for insulating steel roofs and walls, this solution delivers integrated thermal and acoustic insulation while also providing resistance to moisture and corrosion.
3.Indoor Partition Walls
Improves the sound insulation and thermal performance of interior partitions, helping to create more peaceful and comfortable living or working environments.
4.Train Compartments
Offers lightweight yet effective thermal and acoustic insulation for railway vehicles, elevating passenger comfort and supporting energy conservation.
5.Sound Absorption and Acoustical Isolation
Ideal for use in studios, cinemas, and mechanical equipment rooms to suppress noise transmission and refine acoustic quality.
6.HVAC Duct Insulation
Encases ventilation ducts to minimize thermal loss or gain, manage condensation, and lower system noise for improved HVAC performance.
Standards: According to GB STANDARDS,EN13162,EN13172,ISO9001:2000
Details:
Packing:
1.Vacuum plastic bag+woven bag
2.Vacuum plastic bag+woven bag+PE bag
3.Vacuum plastic bag+PE shrinking bag
4.PE shrinking bag
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 7-10 work days after placing order.
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
Our service
-One year warranty for all products
-Necessary technical support
-Delivery quality products with excellent service on time
-Supply one stop solution on insulation and ventilation products
-Supply high level QC service
