| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | FANRYN |
| รายละเอียดการบรรจุ: | ถุงพลาสติก |
| เวลาการส่งมอบ: | 10 วันทำงาน |
| เงื่อนไขการชำระเงิน: | t/t |
| คุณสมบัติ: | น้ำหนักเบา ติดตั้งง่าย ทนทาน | ความยาว: | 60m |
|---|---|---|---|
| ติดกาว: | ติดกาวด้วยตนเอง | แรงดึง: | ≥80N/25 มม. |
| แอปพลิเคชัน: | ฉนวนกันความร้อนและสิ่งกีดขวางไอ | การยืดตัว: | ≥15% |
| คะแนนดับเพลิง: | คลาส A/คลาส 1 | ความต้านทานอุณหภูมิ: | -30 ℃ถึง 120 ℃ |
| การสะท้อนกลับ: | 97% | อัตราการส่งผ่านไอน้ำ: | ≤0.02g/m²• 24 ชม. |
| ความหนา: | 0.03-0.05มม | วัสดุ: | อลูมิเนียมฟอยล์ |
| น้ำหนัก: | 85-90GSM | ความกว้าง: | 1.2m |
| เน้น: | flame retardant aluminum foil facing,aluminum-glass cloth duct wrap,mineral wool lamination foil |
||
Product Introduction Of The ALUMINUM-GLASS CLOTH FOIL FACING
This versatile flame-retardant foil facing is the ideal partner for insulating blanket and board products. Specifically designed for online lamination with fiberglass, rock wool, and mineral wool insulation, it adds a critical layer of fire protection and a durable, reflective finish. Used as a duct wrap or as the facing on pre-fabricated insulation boards, it simplifies installation for contractors while providing a Class 1 fire-rated, vapor-tight seal for architectural and industrial insulation projects, from commercial walls to boiler insulation.

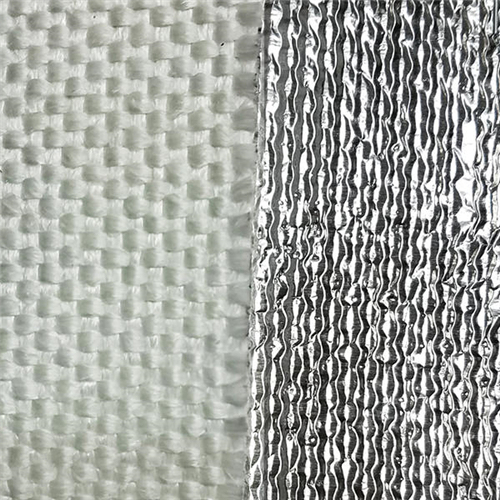

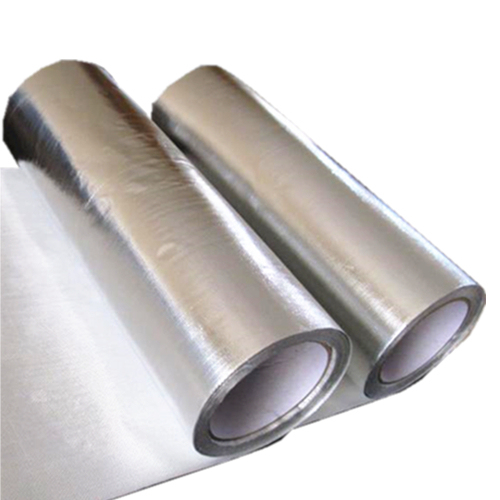

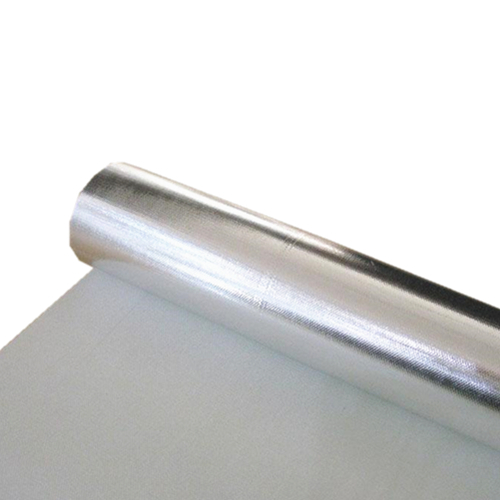

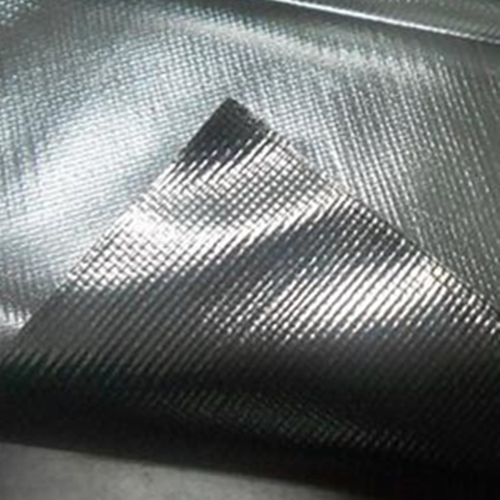

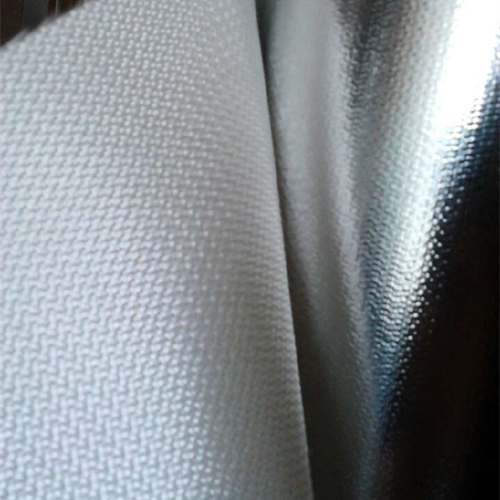

Product Details Of The ALUMINUM-GLASS CLOTH FOIL FACING
Product Parameter Of The ALUMINUM-GLASS CLOTH FOIL FACING
| Product | Construction |
|---|---|
| FG-701 | Foil: 7 micron / Polyethylene / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
| FG-R701 | Foil: 7 micron / Flame retardant adhesive / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
| FG-R1801 | Foil: 18 micron / Flame retardant adhesive / 95 gsm fiberglass cloth ( 8x8 threads/cm) |
Fiberglass cloth standard weight is 95gsm ~110 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m
Inner core: 76mm
TYPICAL PHYSICAL PROPERTIES
| Product | Basic weight (g/m²) | Tensile MD (n/25mm) | Tensile XD (n/25mm) | Bursting Strength(n) | WVTR (ng/N.s) | Reflectivity of Foil Surface | Temperature Resistance (℃) | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| FG-701 | 160 | 310 | 190 | 125 | 5.75 | 95% | -29~ +66 | ----- |
| FG-R701 | 130 | 260 | 180 | 125 | 5.75 | 95% | -29~ +66 | Class 1 |
| FG-R1801 | 170 | 300 | 160 | 125 | 5.75 | 95% | -29~ +66 | Class 1 |
Product Feature And Application Of The ALUMINUM-GLASS CLOTH FOIL FACING
Heavy-Duty Protection: The 18-micron foil offers superior resistance to heat and physical damage compared to standard foils.
Certified Fire Safety: Class 1 Fire Rating ensures the material contributes to a safer working environment.
Moisture & Vapor Proof: Creates an impermeable shield that protects valuable machinery from corrosive moisture and vapor.
High-Temperature Stability: Maintains integrity and performance in temperatures up to 66°C.
Tear-Resistant Backing: The fiberglass cloth provides a strong, scuff-resistant surface that is easy to work with.
APPLICATION:
Aluminum fiberglass foil suit for HVAC duct wrap, also used for on-line lamination with insulation materials of glass wool, rock wool and mineral wool. The typical benefit is high tensile strength, excellent tear resistance.
