| รายละเอียดการบรรจุ: | ถุงพลาสติก |
|---|---|
| เวลาการส่งมอบ: | 15 วันทำงาน |
| เงื่อนไขการชำระเงิน: | t/t |
| ลวดลาย: | ผ้าบาติก | ผลิตภัณฑ์ส่องแสงมุม: | 90 ° |
|---|---|---|---|
| ขนาดเครื่องยนต์: | STD | ไม่ได้เป็นส่วนหนึ่ง: | 3977530 |
| แรงดันไฟฟ้า: | 200-600 โวลต์ 50-60 เฮิรตซ์ | คำอธิบายแคตตาล็อก: | Air Motor: Exchange อ้างอิงถึง E2C068N |
| เหมาะสม: | ตระกูล | จังหวะ: | 8.5 ใน |
| อัตราแรงดันไฟฟ้ากระแสสลับ: | 250 โวลต์ | วัสดุเลนส์: | เงิน |
| คุณสมบัติ: | ที่ปรับแต่งได้ | ประเภทขนาด: | ขนาดตัวอย่าง |
| การทำซ้ำ: | 0.03 มม. | น้ำหนัก: | 1 กิโลกรัม |
| หมวดหมู่: | สวิตช์สวิตช์ จำกัด | ||
| เน้น: | fireproof rubber insulation pipe,hot water pipe insulation,cold water pipe insulation |
||

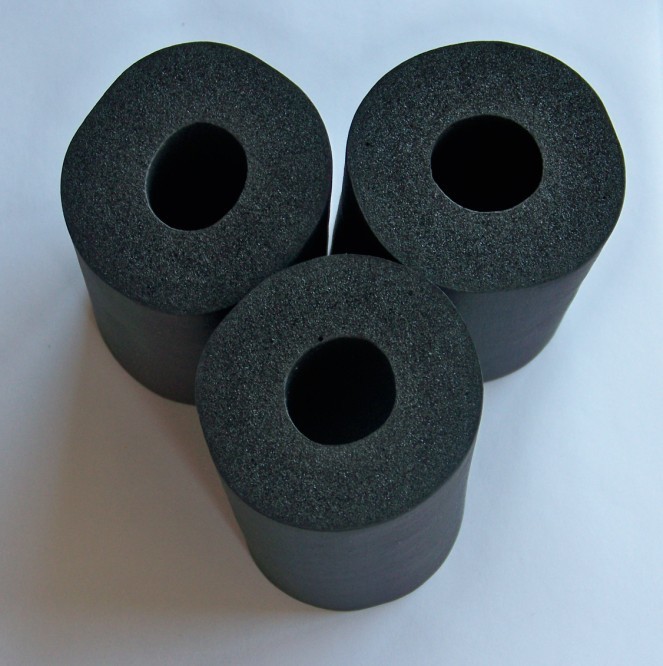

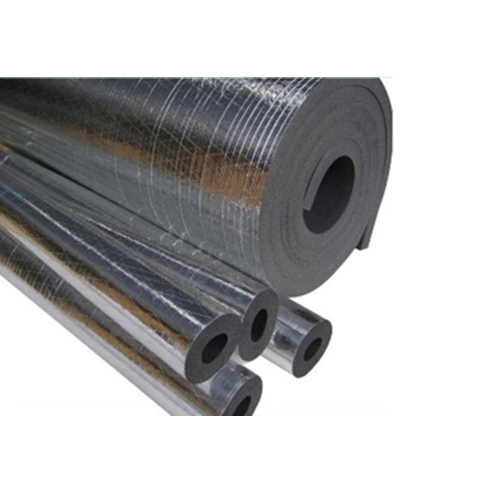

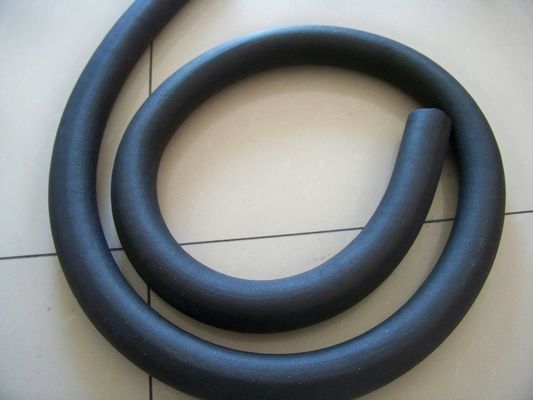

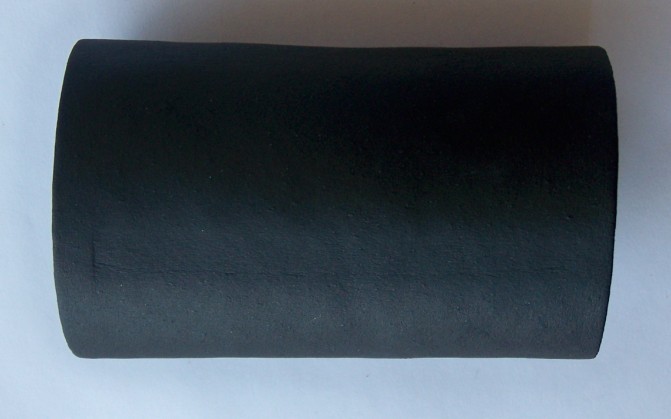

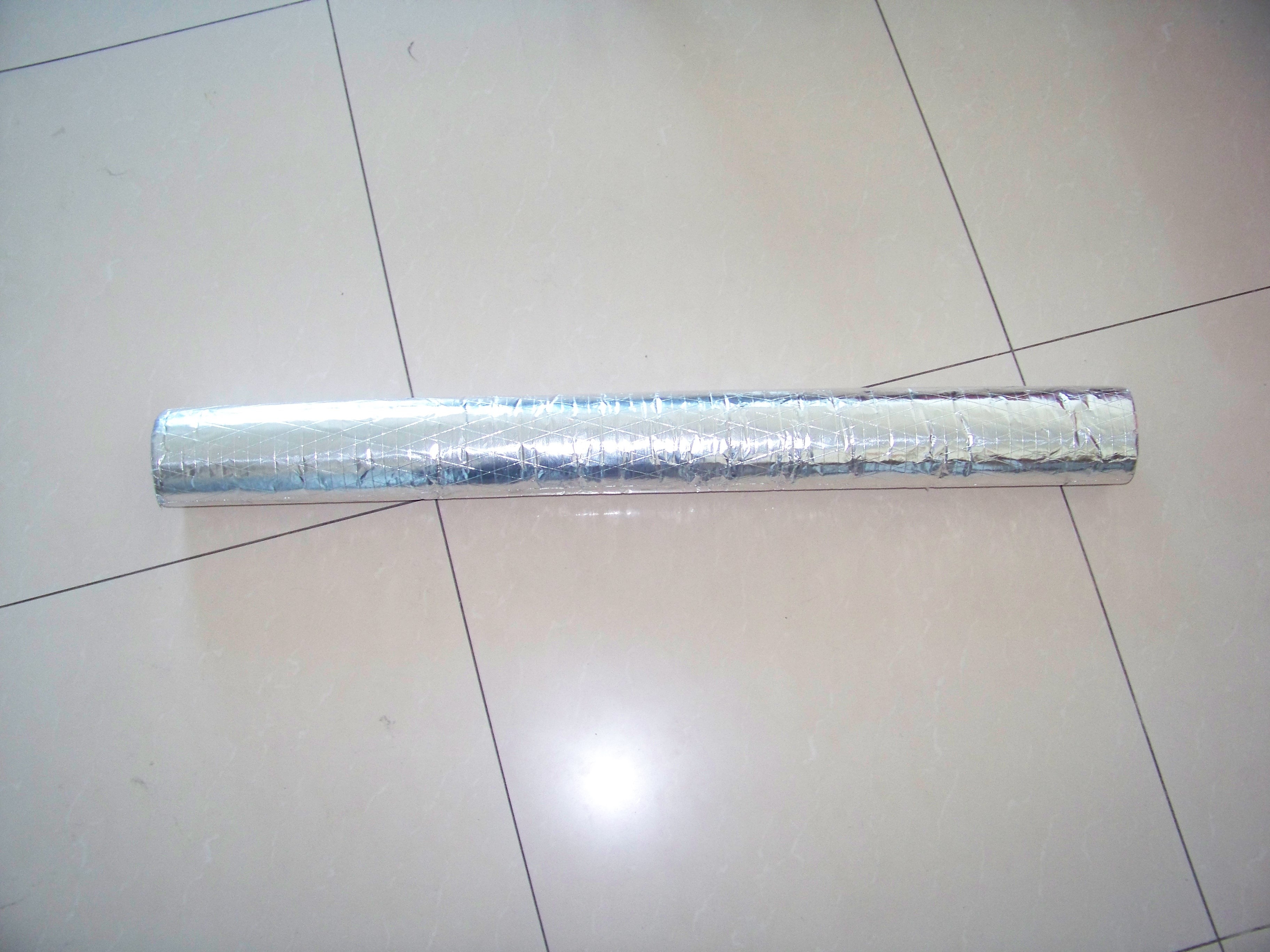

Engineered with advanced fire-resistant additives, this rubber insulation pipe meets stringent safety standards including GB/T 8624 and BS476. It features a high oxygen index (≥40%) and low smoke density, ensuring safety in case of fire. Its excellent thermal stability and anti-aging properties make it perfect for insulating hot and cold water pipes in commercial buildings, hospitals, and schools. Easy to install and maintain, it provides long-term reliability and peace of mind.
| Item | Unit | Specification | Standard | |
|---|---|---|---|---|
| Density | Kg/m3 | 40~90 | GB/T 6343 | |
| Temperature | ℃ | -50~110 | GB/T 17794 | |
| Flammability | —— | B | GB/T 8624-2006 | |
| B1 | ||||
| Oxy gen index | % | ≥40 | GB/T 2406 | |
| SDR | ≤65 | GB 8627-1999 | ||
| Conductivity factor Average temperature -20℃ 0℃ 40℃ |
W/(m·k) | ≤0.031 ≤0.034 ≤0.036 |
GB/T 10294 | |
| Water vapor permeability | Factor | —— | ≥1.0*104 | GB/T 17146-1997 |
| coefficient | g/(m.s.pa) | ≤1.96*10-11 | ||
| Water absorption ratio in vacuum | % | ≤10 | GB/T 17794-2008 | |
| Dimension stability 105±3℃,7d |
% | ≤10 | GB/T 8811 | |
| Crack resistance | N/cm | ≥2.5 | GB/T 10808 | |
| Compression resilience ratio | % | ≥70 | GB/T 6669 | |
| Anti-ozone | —— | Not cracking | GB/T 7762 | |
| Agin resistance | —— | Slightly crumpling,no cracks,no pin holes,not deforming | GB/T 16259 | |
| Tube inner diameter (mm) | 9mm thick (1.8m/piece) |
15mm thick (2m/piece) |
20mm thick (2m/piece) |
25mm thick (2m/piece) |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Size (mm*mm) |
Piece | Piece/box | Size (mm*mm) |
Piece | Size (mm*mm) |
Piece | Size (mm*mm) |
Piece | |
| 6 | 6*9 | 180 | 180 | ||||||
| 10 | 10*9 | 140 | 140 | 10*15 | 80 | 10*20 | 70 | ||
| 13 | 13*9 | 120 | 100 | 13*15 | 80 | 13*20 | 50 | ||
| 16 | 16*9 | 100 | 95 | 16*15 | 60 | 16*20 | 50 | ||
| 19 | 19*9 | 100 | 80 | 19*15 | 60 | 19*20 | 40 | ||
| 22 | 22*9 | 100 | 70 | 22*15 | 60 | 22*20 | 40 | 22*25 | 30 |
| 25 | 25*9 | 80 | 55 | 25*15 | 60 | 25*20 | 30 | 25*25 | 25 |
| 28 | 28*9 | 60 | 50 | 28*15 | 50 | 28*20 | 30 | 28*25 | 25 |
| 32 | 32*9 | 60 | 45 | ||||||
| 34 | 34*15 | 40 | 34*20 | 30 | 34*25 | 25 | |||
| 35 | 35*9 | 60 | 40 | ||||||
| 38*9 | 50 | 30 | |||||||
| 42 | 42*9 | 50 | 30 | ||||||
| 43 | 43*9 | 50 | 30 | 43*15 | 30 | 43*20 | 25 | 43*25 | 20 |
| 48 | 48*9 | 50 | 28 | 48*15 | 30 | 48*20 | 25 | 48*25 | 20 |
| 54 | 54*9 | 50 | 25 | ||||||
| 60 | 60*9 | 50 | 20 | 60*15 | 30 | 60*20 | 20 | 60*25 | 15 |
| 76 | 76*15 | 25 | 76*20 | 15 | 76*25 | 15 | |||
| 89 | 89*20 | 15 | 89*25 | 15 | |||||
| 108 | 108*20 | 15 | 108*25 | 10 | |||||
Packing
Note: OEM is acceptable
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order.
Q4: What is your advantage on rubber insulation pipe?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
