| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | FANRYN |
| จำนวนสั่งซื้อขั้นต่ำ: | หนึ่ง 40 กองบัญชาการ |
| รายละเอียดการบรรจุ: | ถุงพลาสติก |
| เวลาการส่งมอบ: | 15 วันทำการ |
| เงื่อนไขการชำระเงิน: | ที/ที |
| ค่าสัมประสิทธิ์การดูดซับเสียง: | 0.85 | ชื่อผลิตภัณฑ์: | ฉนวนกันความร้อน ขนแร่ |
|---|---|---|---|
| สี: | โดยทั่วไปจะมีสีเหลืองหรือสีน้ำตาล | การใช้งาน: | การสร้างฉนวนกันความร้อน |
| ทนไฟ: | ไม่ติดไฟ,คลาส A1 | ความหนา: | 25-100 มม. |
| ผลกระทบต่อสิ่งแวดล้อม: | รีไซเคิลได้เป็นมิตรกับสิ่งแวดล้อม | ความหนาแน่น: | 40-200 กก./ลบ.ม |
| วิธีการติดตั้ง: | การซ่อมกลหรือกาว | การนำความร้อน: | 0.035 วัตต์/เมตร·เค |
| การดูดซึมน้ำ: | ต่ำ | ทนต่ออุณหภูมิ: | -269°C ถึง 700°C |
| วัสดุ: | ขนแร่ | แรงอัด: | ≥10กิโลปาสคาล |
| ขนาด: | แตกต่างกันไป (เช่น แผ่น 600x1200 มม.) |

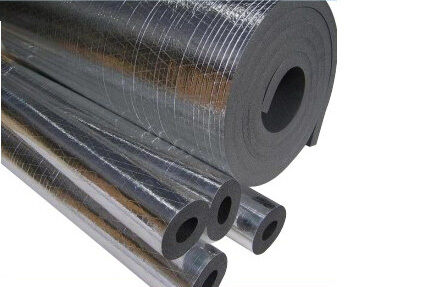

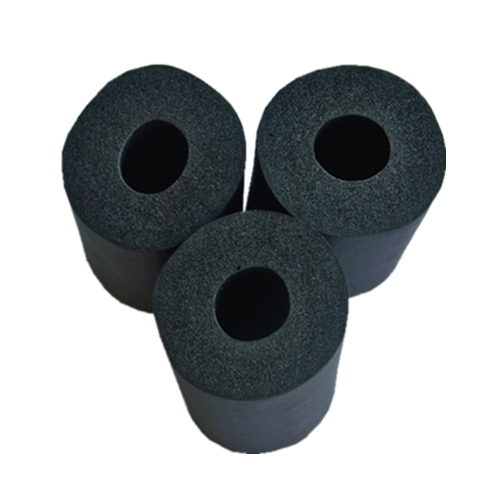

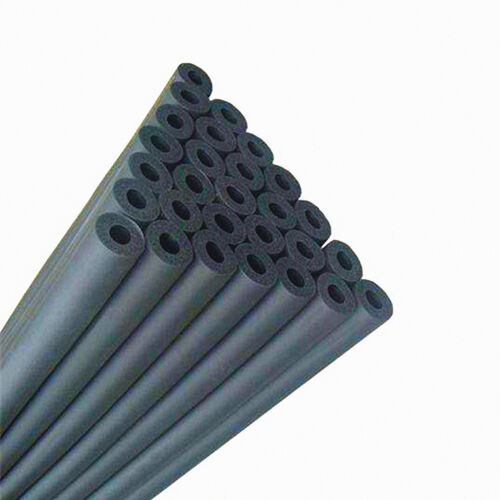

FANRYN rubber-plastic insulation pipe is a high-performance, flexible closed-cell foam material designed for thermal insulation in HVAC systems, plumbing, and industrial applications. Available in two fire-performance grades – Class B1 (Standard) and Class B0 (Premium) – our pipes offer excellent thermal efficiency, moisture resistance, and long-term durability. Suitable for both hot and cold piping systems, they are the ideal choice for energy-saving building projects worldwide.
| Item | Unit | Specification | Standard | |
|---|---|---|---|---|
| Density | Kg/m3 | 40~90 | GB/T 6343 | |
| Temperature | ℃ | -50~110 | GB/T 17794 | |
| Flammability | —— | B | GB/T 8624-2006 | |
| Glass0 | BS476Part 7∝Part6 | |||
| Oxygen index | % | ≥40 | GB/T 2406 | |
| SDR | ≤65 | GB 8627-1999 | ||
| Conductivity factor Average temperature -20℃ 0℃ 40℃ |
W/(m·k) | ≤0.031 ≤0.034 ≤0.036 |
GB/T 10294 | |
| Water vapor permeability | Factor | —— | ≥1.0*104 | GB/T 17146-1997 |
| coefficient | g/(m.s.pa) | ≤1.96*10-11 | ||
| Water absorption ratio in vacuum | % | ≤10 | GB/T 17794-2008 | |
| Dimension stability 105±3℃,7d |
% | ≤10 | GB/T 8811 | |
| Crack resistance | N/cm | ≥2.5 | GB/T 10808 | |
| Compression resilience ratio | % | ≥70 | GB/T 6669 | |
| Anti-ozone | —— | Not cracking | GB/T 7762 | |
| Agin resistance | —— | Slightly crumpling,no cracks,no pin holes,not deforming | GB/T 16259 | |
| Item | Unit | Specification | Standard | ||
|---|---|---|---|---|---|
| Density | Kg/m3 | ≤95 | GB/T 6343 | ||
| Flammability | Oxygen index | % | ≥32 | GB/T 2406 | |
| SDR | —— | ≤75 | GB/T 8627 | ||
| No less than level C when used in the construction field | GB 8624-2006 | ||||
| Conductivity factor Average temperature -20℃ 0℃ 40℃ |
W/(m.k) |
≤0.031 ≤0.034 ≤0.036 |
GB/T 10294 | ||
| Water vapor permeability | coefficient | g/(m.s.pa) | ≤2.8*10-11 | GB/T 17146-1997 | |
| Factor | —— | ≥7.0*103 | |||
| Water absorption ratio in vacuum | % | ≤10 | GB/T 17794-2008 | ||
| Dimension stability 105±3℃, 7d |
% | ≤10 | GB/T 8811 | ||
| Crack resistance | N/cm | ≥2.5 | GB/T 10808 | ||
| Compression resilience ratio Compression ratio)50% Compression time)72h |
% |
≥70 | GB/T 6669-2001 | ||
| Anti-ozone Ozone pressure 202mpa 200h |
—— | Not cracking | GB/T 7762 | ||
| Aging resistance 150h |
—— | Slightly crumpling, no cracks, no pin holes,not deforming | GB/T 16259 | ||
| Temperature | ℃ | -40—110℃ | GB/T17794 | ||
| Tube inner diameter (mm) | 9mm thick (1.8m/piece) |
15mm thick (2m/piece) |
20mm thick (2m/piece) |
25mm thick (2m/piece) |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Size (mm*mm) |
Piece | Piece/box | Size (mm*mm) |
Piece | Size (mm*mm) |
Piece | Size (mm*mm) |
Piece | |
| 6 | 6*9 | 180 | 180 | ||||||
| 10 | 10*9 | 140 | 140 | 10*15 | 80 | 10*20 | 70 | ||
| 13 | 13*9 | 120 | 100 | 13*15 | 80 | 13*20 | 50 | ||
| 16 | 16*9 | 100 | 95 | 16*15 | 60 | 16*20 | 50 | ||
| 19 | 19*9 | 100 | 80 | 19*15 | 60 | 19*20 | 40 | ||
| 22 | 22*9 | 100 | 70 | 22*15 | 60 | 22*20 | 40 | 22*25 | 30 |
| 25 | 25*9 | 80 | 55 | 25*15 | 60 | 25*20 | 30 | 25*25 | 25 |
| 28 | 28*9 | 60 | 50 | 28*15 | 50 | 28*20 | 30 | 28*25 | 25 |
| 32 | 32*9 | 60 | 45 | ||||||
| 34 | 34*15 | 40 | 34*20 | 30 | 34*25 | 25 | |||
| 35 | 35*9 | 60 | 40 | ||||||
| 38*9 | 50 | 30 | |||||||
| 42 | 42*9 | 50 | 30 | ||||||
| 43 | 43*9 | 50 | 30 | 43*15 | 30 | 43*20 | 25 | 43*25 | 20 |
| 48 | 48*9 | 50 | 28 | 48*15 | 30 | 48*20 | 25 | 48*25 | 20 |
| 54 | 54*9 | 50 | 25 | ||||||
| 60 | 60*9 | 50 | 20 | 60*15 | 30 | 60*20 | 20 | 60*25 | 15 |
| 76 | 76*15 | 25 | 76*20 | 15 | 76*25 | 15 | |||
| 89 | 89*20 | 15 | 89*25 | 15 | |||||
| 108 | 108*20 | 15 | 108*25 | 10 | |||||
Excellent Thermal Insulation – Low thermal conductivity (≤0.031–0.036 W/m·K) ensures maximum energy efficiency.
Superior Moisture Resistance – Closed-cell structure prevents water vapor penetration (µ ≥ 1.0*10⁴), ideal for chilled water pipes and condensation control.
Fire-Rated Safety – Class B1 meets GB/T 8624-2006; Class B0 achieves higher fire resistance (BS476 Part 7/Part 6 Glass 0).
Wide Temperature Range – Performs reliably from -50°C to 110°C, suitable for both freezing and hot water applications.

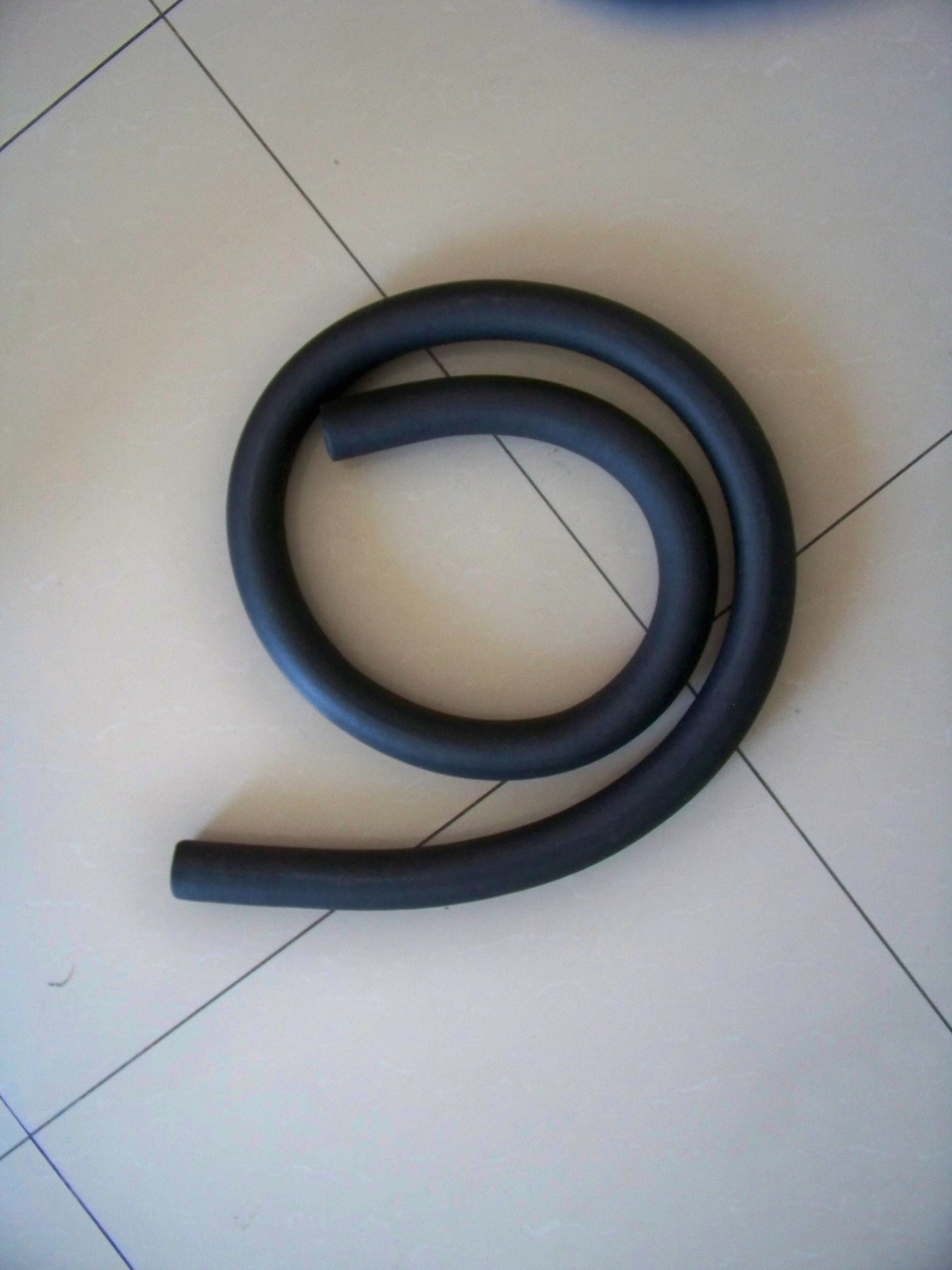

Flexible & Durable – Good pliability for easy installation; resistant to vibration, ozone, and aging.
Eco-Friendly & Energy-Saving – Reduces heat loss/gain, lowers carbon footprint, and complies with international environmental standards.
Packing Options:
Standard: PE plastic bag
Export packing: PE plastic bag + carton
OEM packaging and custom sizes are available upon request.
Our rubber insulation pipes are widely used in:
HVAC Systems: Chilled water pipes, condensate pipes, hot water pipes, air ducts.
Plumbing: Domestic & commercial hot/cold water supply lines.
Industrial Piping: Insulation for cold/hot medium pipelines in processing plants.
Refrigeration & Air Conditioning: Condenser and evaporator line insulation.
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order.
Q4: What is your advantage on rubber insulation pipe?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
