| การใช้งาน: | เพดานเชิงพาณิชย์และที่อยู่อาศัย | ขนาด: | 24 x 24 นิ้ว |
|---|---|---|---|
| วัสดุ: | ไฟเบอร์กลาส | สี: | สีขาว |
| ความหนา: | 0.5 นิ้ว | พื้นผิว: | เรียบ |
| ชื่อผลิตภัณฑ์: | กระเบื้องฝ้าเพดานไฟเบอร์กลาส | การยิง: | คลาสเอ |
| ประเภทขอบ: | เตกูลาร์ | ประเภทการติดตั้ง: | ดรอปอิน |
| ต้านทานความชื้น: | สูง | น้ำหนัก: | 1.2 ปอนด์ต่อกระเบื้อง |
| การซ่อมบำรุง: | ทำความสะอาดง่ายด้วยผ้าชุบน้ำ | ประสิทธิภาพเสียง: | อาร์ซี 0.85 |
| การรับประกัน: | 5 ปี |

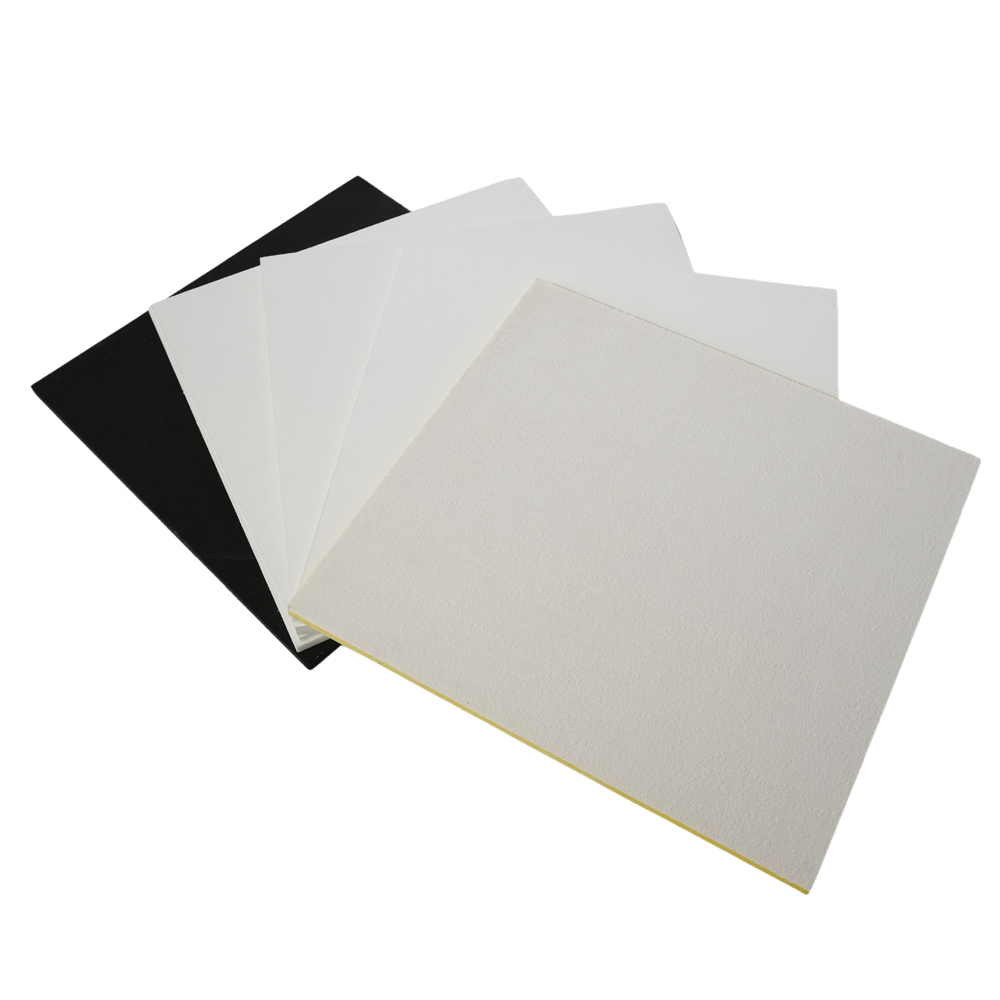

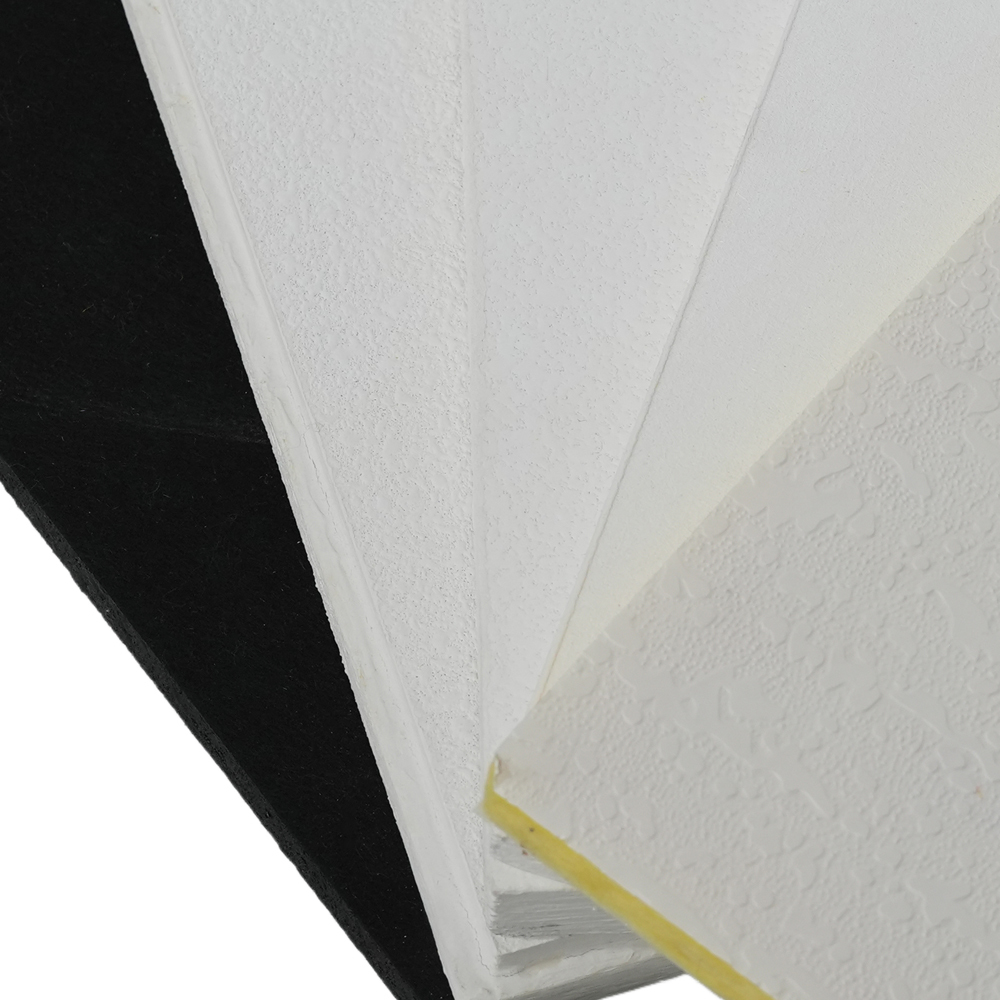

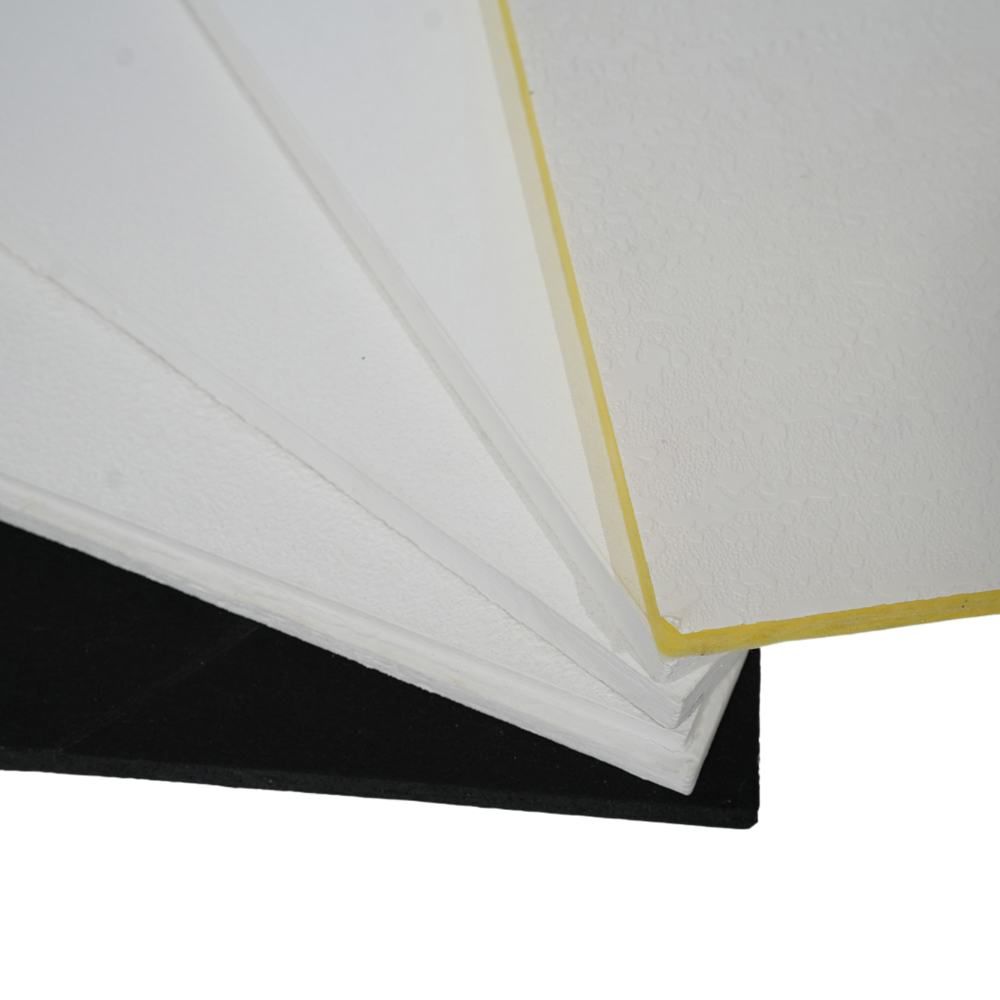

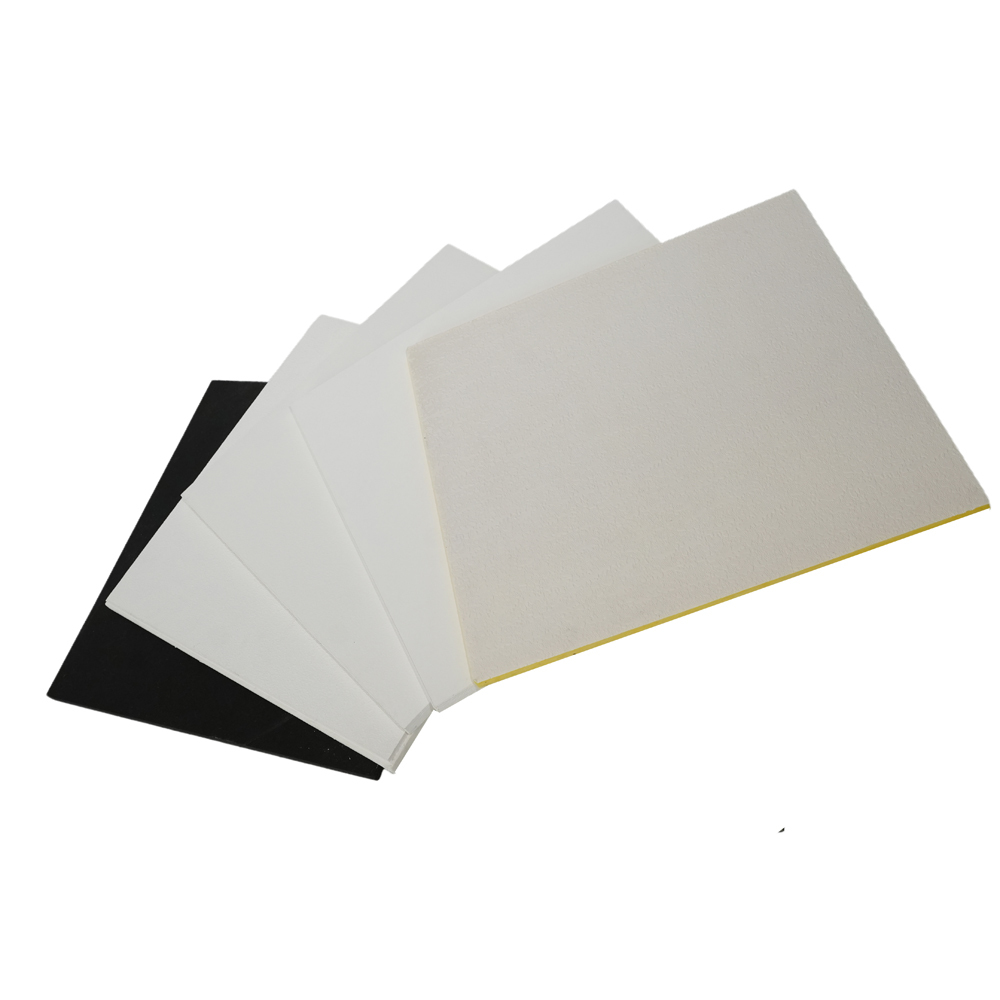

FANRYN Fiberglass Ceiling Tile is manufactured from high-density fiberglass wool, offering excellent acoustic absorption and thermal insulation performance. The visible face is laminated with a decorative fiberglass tissue, while the back is covered with standard tissue. All four edges are sealed and square, ensuring a clean, parallel fit with standard grid systems after installation.
![]()
High Density: 70-130 kg/m³ – rigid and durable
Class A Fire-Resistant: Complies with strict fire safety standards
Excellent Sound Absorption: NRC 0.8-0.9 – ideal for noise control
Thermal Insulation: ≥0.4 (m²·K)/W – helps reduce energy costs
Moisture Resistant: Dimensionally stable at up to 95% RH and 40°C – no sagging, warping, or delamination
Low Moisture Rate: ≤1% (tested to JC/T670-2005)
Eco-Friendly: Fully recyclable tiles and packaging
Safe: Low radionuclide activity (IRa≤1.0, Iγ≤1.3)
| Parameter | Value |
|---|---|
| Material | High-density fiberglass wool |
| Density | 70-130 kg/m³ |
| Face Finish | Decorative fiberglass tissue or PVC (custom colors available) |
| Standard Colors | White, black, or custom |
| Fire Rating | Class A |
| Thermal Resistance | ≥0.4 (m²·K)/W |
| NRC (Sound Absorption) | 0.8 – 0.9 |
| Humidity Resistance | Stable at 95% RH / 40°C |
| Moisture Rate | ≤1% |
| Grid Compatibility | Exposed grids, 15mm or 24mm width |
Designed for use with exposed grid systems (15mm or 24mm width)
Easy to trim on-site
Compatible with both inch and metric grid systems
Office ceilings
Conference rooms
Schools and libraries
Hospitals and clinics
Hotels and commercial spaces
